Any a/c recommendations? looking for best bang for buck, I can hookup split a/c if needed. There is a power point outside for running a caravan, so thinking wire up a split system.
Looking around for cheapest option, because I'm a tight a$$ box a/c
looking at this so far box a/c can get for $400 because I fix their phones and ipad tablets and other shit....https://www.cashconverters.com.au/shop/household-business/cooling-heating/air-conditioners/air-conditioner/002100454150
Looking around for cheapest option, because I'm a tight a$$ box a/c
looking at this so far box a/c can get for $400 because I fix their phones and ipad tablets and other shit....https://www.cashconverters.com.au/shop/household-business/cooling-heating/air-conditioners/air-conditioner/002100454150
- User ID
- 3548
I got one of these 3.5kw splits https://www.kogan.com/au/buy/kogan-...em-air-conditioner-reverse-cycle-white-kogan/
Also got an 8.2kw to replace a 20 something year old teco.
The 3.5kw should cool a room pretty well with all the hot lights and stuff. They do vertical window AC's also but they're less efficient
Also got an 8.2kw to replace a 20 something year old teco.
The 3.5kw should cool a room pretty well with all the hot lights and stuff. They do vertical window AC's also but they're less efficient
- User ID
- 7691
Fuck Yeah! ordering now, thanks bro
- User ID
- 3548
There's a few tools you'll need to install a split though that's the only bad thing,
You need good quality copper pipe which you can either buy pre flared with insulation, or you can buy the flaring tools and nuts to do it yourself.
This is probably the easier way https://www.starsparky.com.au/produ...UQRuK-fAVSRroLKiDbfyL5pCqT9wjFnCInNelGWeUjKaJ
Then you need a vacuum pump and some gauges to pump it down to see if it holds a vacuum before releasing the refrigerant into the unit, if it doesn't hold then the refrigerant will leak.
A pipe bender helps if you need to bend 90Ā° angles etc
And some electrical cable rated for like 15 amps should be good.
Where I am they charge ridiculous amounts to install, I'll probably pay someone to go over the big one though.
You need good quality copper pipe which you can either buy pre flared with insulation, or you can buy the flaring tools and nuts to do it yourself.

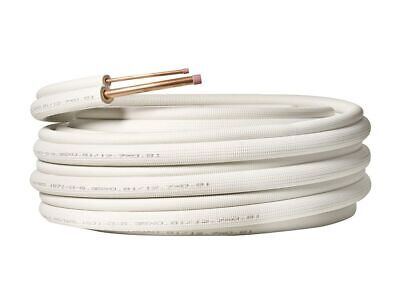

1/4 - 3/8" inch Copper pipe tube pair coil 5M Long for Split install aircon | eBay
The Annealed Pair Coil is made to the highest standards conforming to AS/NZS1571 Copper which is a seamless tube for Air Conditioning and Refrigeration. AS/NZS1571 Copper.
www.ebay.com.au
This is probably the easier way https://www.starsparky.com.au/produ...UQRuK-fAVSRroLKiDbfyL5pCqT9wjFnCInNelGWeUjKaJ
Then you need a vacuum pump and some gauges to pump it down to see if it holds a vacuum before releasing the refrigerant into the unit, if it doesn't hold then the refrigerant will leak.

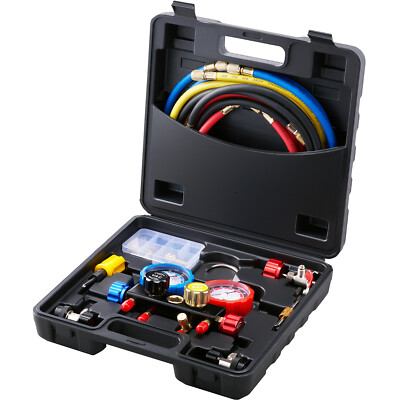

VEVOR AC Manifold Gauge Set 4-Way Fit R134A R22 R12 R410A Refrigeration Charging | eBay
VEVOR Portable Refrigerant Recovery Machine 3/4 HP Single Cylinder Air Condition. VEVOR Diesel Air Heater 12V 5KW Bluetooth App LCD Display for Car Bus RV Indoors. VEVOR AC Compressor SD508 Sanden V-Belt 2 Groove Pulley 3/4" 7/8" Ports12V.
www.ebay.com.au
OMT 3.5CFM 1/4HP AC 1 Stage Refrigerant Vacuum Pump Air Conditioning f R22 R123a | eBay
With a 5.9 m3/h flow rate, it can draw systems down to 5 Pa (37.5 microns) for quick and easy servicing of AC systems employing R12, R22, R134a, R410a, R502, and R1234yf refrigerants. Easily monitor the pump's oil level and quality using the built in sight glass.
www.ebay.com.au
A pipe bender helps if you need to bend 90Ā° angles etc
And some electrical cable rated for like 15 amps should be good.
Where I am they charge ridiculous amounts to install, I'll probably pay someone to go over the big one though.
Last edited:
- User ID
- 3548
Most outlets are wired rated for 20 amps but are on 10-15 amp breakers.
I'm just gonna hook my little aircon up to a 20 amp plug and maybe replace the wall outlet to 20 amp one just to be on the safe side.
Big one is already on a seperate 20 amp circuit so I should be able to swap it out pretty easy.
I'm just gonna hook my little aircon up to a 20 amp plug and maybe replace the wall outlet to 20 amp one just to be on the safe side.
Big one is already on a seperate 20 amp circuit so I should be able to swap it out pretty easy.
Last edited:
- User ID
- 3548
Yep best to be on the safe side, I forgot to link the vertical window aircon. Definitely the safer option here, or just get a HVAC to do the mini split..
https://www.kogan.com/au/buy/kogan-...l-window-air-conditioner-reverse-cycle-kogan/
https://www.kogan.com/au/buy/kogan-...l-window-air-conditioner-reverse-cycle-kogan/
- User ID
- 7691
Holly shit that is not easy, I thought a couple of hoses and rewire the plug for power pointThere's a few tools you'll need to install a split though that's the only bad thing,
You need good quality copper pipe which you can either buy pre flared with insulation, or you can buy the flaring tools and nuts to do it yourself.
1/4 - 3/8" inch Copper pipe tube pair coil 5M Long for Split install aircon | eBay
The Annealed Pair Coil is made to the highest standards conforming to AS/NZS1571 Copper which is a seamless tube for Air Conditioning and Refrigeration. AS/NZS1571 Copper.www.ebay.com.au
This is probably the easier way https://www.starsparky.com.au/produ...UQRuK-fAVSRroLKiDbfyL5pCqT9wjFnCInNelGWeUjKaJ
Then you need a vacuum pump and some gauges to pump it down to see if it holds pressure before releasing the refrigerant into the unit.
VEVOR AC Manifold Gauge Set 4-Way Fit R134A R22 R12 R410A Refrigeration Charging | eBay
VEVOR Portable Refrigerant Recovery Machine 3/4 HP Single Cylinder Air Condition. VEVOR Diesel Air Heater 12V 5KW Bluetooth App LCD Display for Car Bus RV Indoors. VEVOR AC Compressor SD508 Sanden V-Belt 2 Groove Pulley 3/4" 7/8" Ports12V.www.ebay.com.auOMT 3.5CFM 1/4HP AC 1 Stage Refrigerant Vacuum Pump Air Conditioning f R22 R123a | eBay
With a 5.9 m3/h flow rate, it can draw systems down to 5 Pa (37.5 microns) for quick and easy servicing of AC systems employing R12, R22, R134a, R410a, R502, and R1234yf refrigerants. Easily monitor the pump's oil level and quality using the built in sight glass.www.ebay.com.au
A pipe bender helps if you need to bend 90Ā° angles etc
And some electrical cable rated for like 15 amps should be good.
Where I am they charge ridiculous amounts to install, I'll probably pay someone to go over the big one though.
fuck that option, box job I can do, just need an ok one, it's a small room
- User ID
- 3548
That Kelvinator will get the job done, it's just less efficient than a splitHolly shit that is not easy, I thought a couple of hoses and rewire the plug for power point
- User ID
- 7691
It's supposed to be near new, but them assholes probably only paid $50 for it off some fucking crack head lol!!!
screw cashies I'll offer $350 of they can go fuck them selves
- User ID
- 3548
Wouldn't be a bad deal if you could get it for that price. I reckon 3.0-3.5kw should be plenty for a small roomIt's supposed to be near new, but them assholes probably only paid $50 for it off some fucking crack head lol!!!
- User ID
- 291
what about a window aircon? I've been spying one off for awhile now
el cheapo:https://www.ebay.com.au/itm/3868600...KTH/YFSKEU0ILO682sWnywb22g==|tkp:BFBM_JK7s4Nl
kogan brand:https://www.ebay.com.au/itm/1766354...tqK+Mnrrmi4TNlOI4I7M6DD5ZA==|tkp:BFBM_JK7s4Nl
el cheapo:https://www.ebay.com.au/itm/3868600...KTH/YFSKEU0ILO682sWnywb22g==|tkp:BFBM_JK7s4Nl
kogan brand:https://www.ebay.com.au/itm/1766354...tqK+Mnrrmi4TNlOI4I7M6DD5ZA==|tkp:BFBM_JK7s4Nl
- User ID
- 3548
Those Kogan / Teco vertical AC's are pretty pricey but their ass ends don't protrude out the window that much, they are quite sleek and come with a few cool features. That's the only reason I could justify paying the extra $$
- User ID
- 7691
- User ID
- 7691
just ordered I'll let you know how it goes! thanks boys
- User ID
- 291
what one did you order?just ordered I'll let you know how it goes! thanks boys
- User ID
- 3548
Hope you got the Kogan one atleast
